The Logs panel enables visualization of streaming events (logs) generated by any component. It allows users to filter logs based on message regex, log level, and tags for more refined insights.

​
Add Logs Panel

1

Navigate to Dashboards

Go to the Dashboards tab, select the desired dashboard, and click on the + Panel button to create a new panel.
2

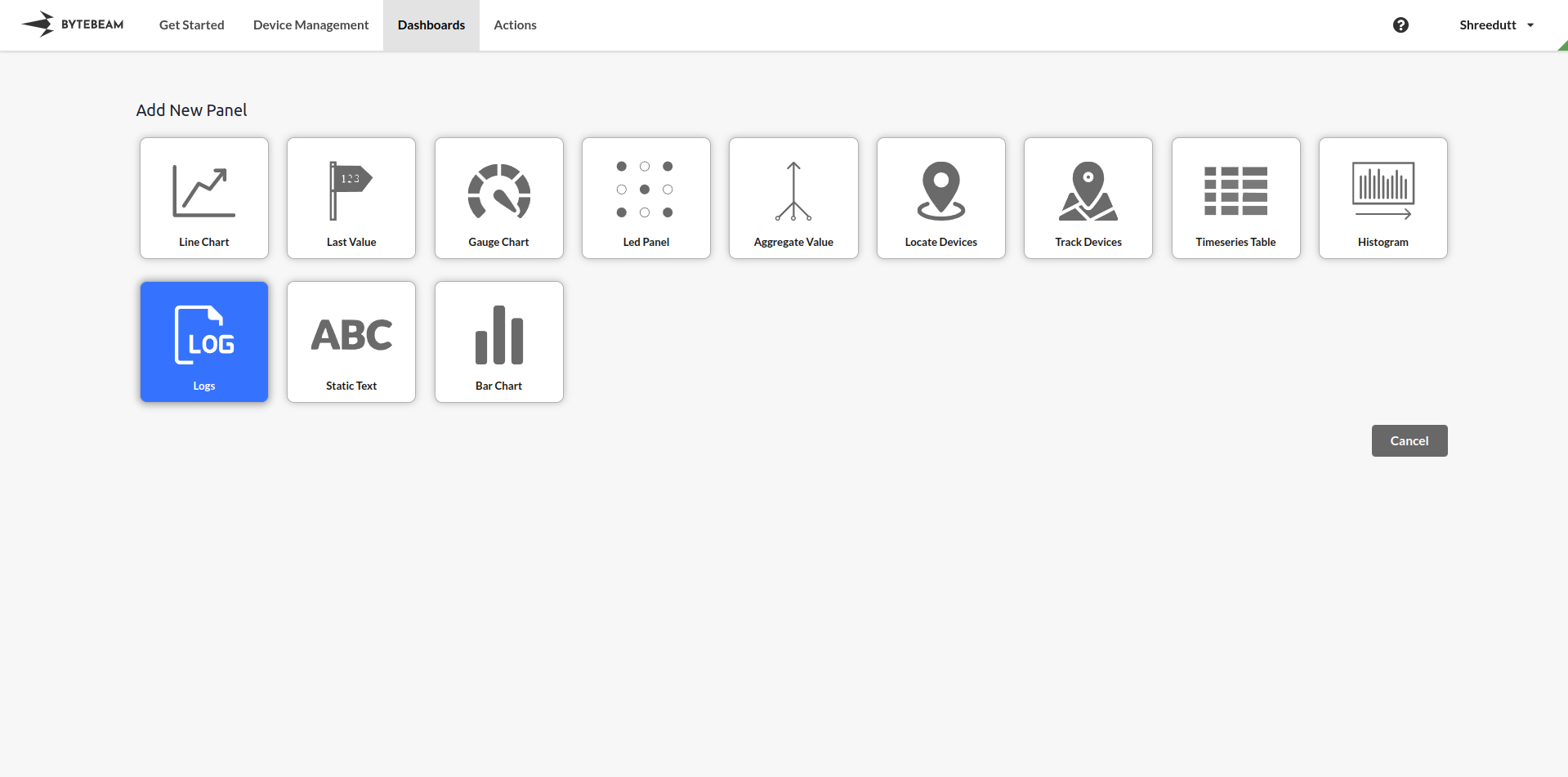

Select Logs Panel

Choose Logs Panel from the list of available panels.\
3

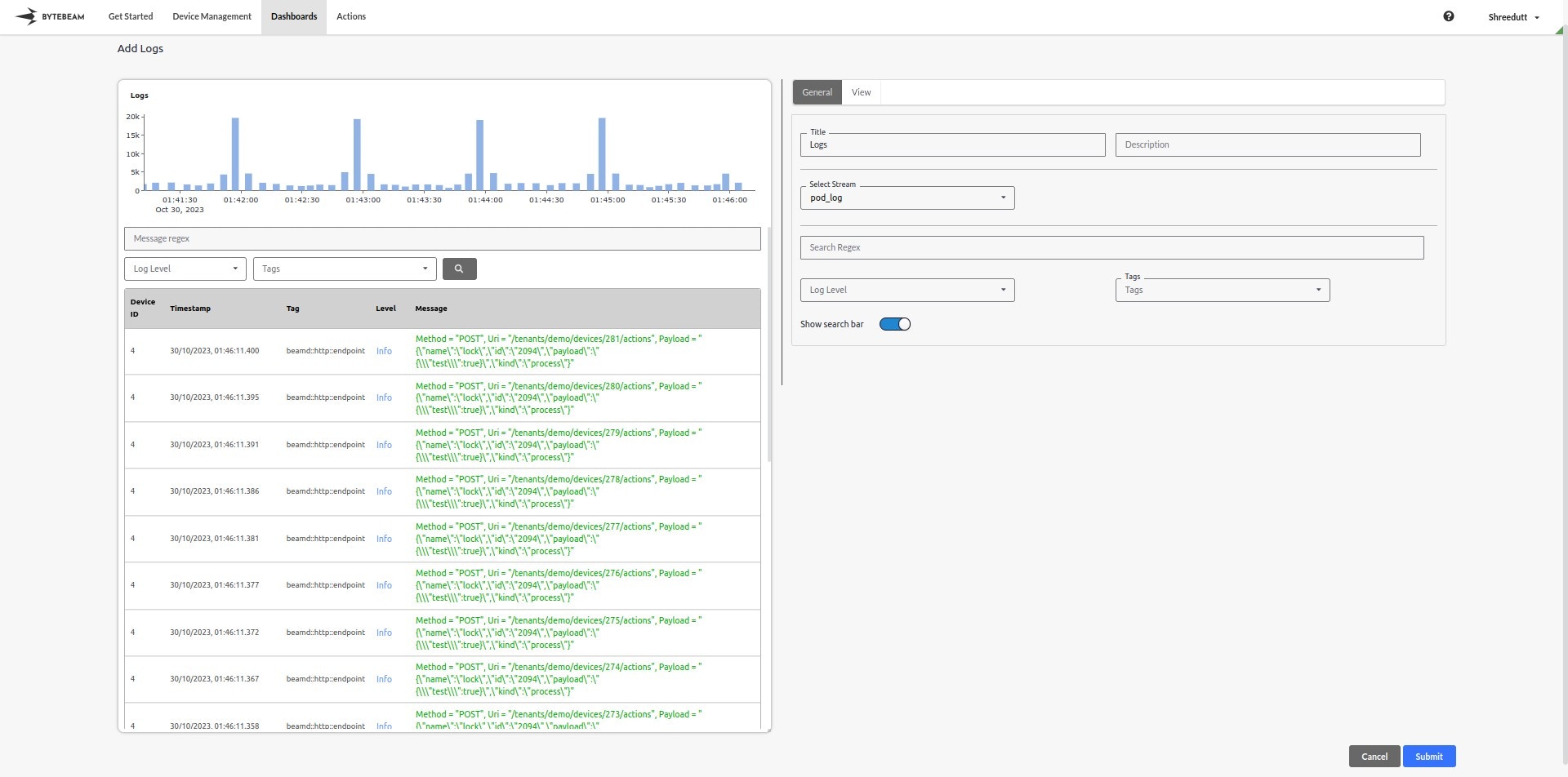

Configure General Settings

In the General tab:
  • Title: Add a descriptive title for the panel (optional).
  • Stream: Select the data stream containing log information.
  • Search Bar: Enable the search bar option to search with a regular expression.
    • When enabled, the search regex, log level, tags, and search icon will appear in the preview panel.
  • Search Regex: Enter a regex pattern to filter messages.
  • Log Level: Specify a log level (e.g., info, warning, error).
  • Tags: Select or enter tags to further filter the logs.
You can refine the log display by clicking the search icon after entering filters in the preview panel.\
4

Customize View Settings

Switch to the View tab to adjust the graph settings:
  • Number of Bins: Adjust the slider to define the number of bins for the histogram of log events.
5

Submit the Panel

Once all configurations and customizations are complete, click Submit to add the Logs Panel to the dashboard.
The panel will now display real-time or historical logs based on the configured filters, allowing for efficient log monitoring and analysis.
